Material Handling

Full control of material flow in your recycling and reprocessing plant free from metal.

CONVEYORS & FERROUS METAL SEPARATORS

With Scanhuggers, you can implement a modular system for your conveyor and metal separation technology, to reliably transport small piece and bulk goods through the necessary process steps and remove unwanted material in the process. You will benefit from modern, robust technology with low maintenance requirements and high availability. Our conveyor components are precisely adapted to each other and designed to ensure a continuous flow of material in your plant and to contribute significantly to its high overall profitability.

TAILOR-MADE CONVEYING SOLUTIONS
From A to B, and all the stops in between.
We produce a large range of customized conveyor solutions tailored to the optimal material flow for every system in between – to and from. We offer a wide product range within: Chip conveyers, Auger discharge systems, Wood scrap conveyers, Vibration tables, and Custom auxiliary hoppers. All our systems are adjustable and adaptable in length and output. With Scanhugger, you can implement a modular system for your conveyor technology, to reliably transport small piece and bulk goods through the necessary process steps. Our low maintenance requirements and high availability enable you to just turn the key and shred away. Our conveyor components are precisely adapted to each other and designed to ensure a continuous flow of material in your plant and to contribute significantly to its high overall profitability.
Vibration table

The HTV- vibrating table is ideal for feeding bark, chips, blocks on to a conveyor system. The flow rate is variable and the feed speed is adjusted to match the material and installation. Max. table width x length 3500 x 6000 mm. The vibrating table is tailor made to each application.

he HTV- vibrating table is ideal for feeding bark, chips, blocks on to a conveyor system. The flow rate is variable and the feed speed is adjusted to match the material and installation. Max. table width x length 3500 x 6000 mm. The vibrating table is tailor made to each application.
vibrating conveyors can be redesigned as infeed conveyors for wood chippers. They can also be used as chip discharge conveyors for both shredders and chippers. Vibrating conveyors can be mounted with the screening section and metal-free zone for mounting metal detector.

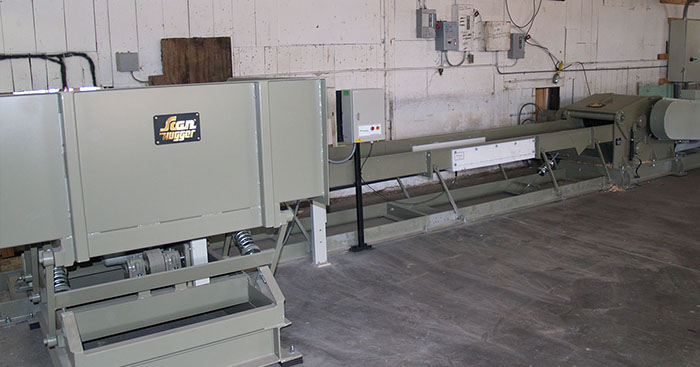

Vibration conveyor

Scanhugger vibrating conveyors can be redesigned as infeed conveyors for wood chippers. They can also be used as chip discharge conveyors for both shredders and chippers. Vibrating conveyors can be mounted with the screening section and metal-free zone for mounting metal detector.

Band conveyor

Scanhugger HTB band conveyors are made for chip transport from chippers and shredders. The conveyor through can be fitted with a non-magnetic section for mounting over band magnet or a metal-free zone for mounting metal detector. The conveyors are made to customer specifications.

Band conveyor for wood waste recycling with shredded wood with green forest background
special discharge and auger transport systems for our hopper shredders to ensure the optimal balance between performance and running costs.

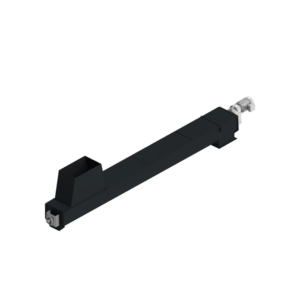

Auger conveyor

Scanhugger augers/screw conveyors with a helical screw blade are used as a chip transport discharge system, often from a shredder and up to a buffer-silo. We produce a special discharge and auger transport systems for our hopper shredders to ensure the optimal balance between performance and running costs.

PREMIUM GRANULATES FREE OF METAL

Metal separation done right.

All our industrial wood shredders and chippers produce a very high quality granulate for the immediate use in wood chip heating systems or to produce briquettes. Metal parts such as nails, screws, clamps or metal fittings are no problem for the cutting system in the HL-series: The metal is shredded together with the waste wood and can then easily be removed by an additional over band magnet, tube magnet or drum separation system. No matter your preferred output we got you covered.

Overbandmagnet

For efficient separation of ferrous metal parts from a stream of chips. Scanhugger HTBM overbandmagnet is installed perpendicular to the material flow or in-line with a conveyor at a transfer point. The overbandmagnet is placed over the belt conveyor / vibrating conveyor. The permanent magnet removes all ferrous particles from the material flow passing underneath it. The overbandmagnets ribbed conveyor belt transports the metal parts to the side of the belt conveyor/ vibrating conveyor and the iron particles drop into a collecting tray or box.

Shredded wood waste in turnkey system under metal-separator. For efficient separation of ferrous metal parts from a stream of chips. Scanhugger HTBM overbandmagnet is installed perpendicular to the material flow or in-line with a conveyor at a transfer point.

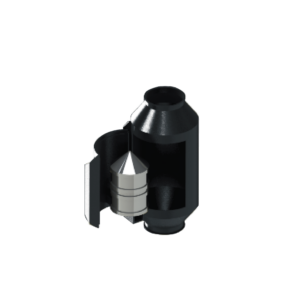

Tube magnet pipe for removal of metal after wood has been shredded

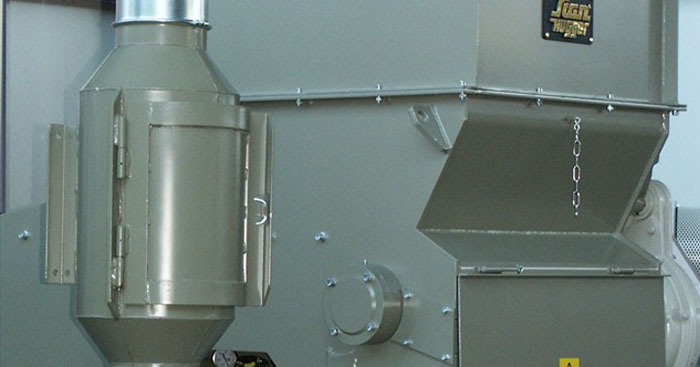

Tube magnet

Scanhugger HRS tube magnets have been specially developed for thorough removal of ferrous metal parts from materials in granular form during transport in pipeline systems. The tube magnet has a steel housing with a cylindrical magnet core mounted in the center of the housing. The material spreads around the magnet core and the ferrous metal parts are separated. The tube magnets are fitted with flanges so they, after mounting forms a single unit with the pipeline system. Tube magnets must be mounted in a vertical position, it gives the best distribution of the material and an optimal separation. There is access to the magnet core through a side door in the housing. The magnet core is mounted on a base attached to the door, and the magnet core swings out when the door is opened. The Scanhugger HRS tube magnets are available in 3 standard sizes HRS 150, HRS 200 and HRS 250. They are designed to be mounted in connection to The Scanhugger Shredders HL 2 – 4 series.

Drum separation

The Scanhugger HSD – drum separator is designed to remove iron parts from a flow of chips. The drum separator is used in connection with band conveyor, chip augers and chain conveyors. The drum separator consists of a stainless steel housing and a rotating drum. The drum is made of two parts, a stationary core with a 180-degree magnetic sector and a rotating shell. The drum rotation follows the material flow and the iron parts remain on the drum until they leave the magnetic field and drops onto the discharge chute. The position of the magnetic field is adjustable using the stationary stub shaft.

wood shredded and re shredder connected with augers/screw conveyors with a helical screw blade are used as a chip transport discharge system

MORE THAN 30 YEARS IN THE MAKING

For more than three decades we have been designing and improving our shredders. We build our shredders to be as reliable as your customers need you to be. Each system is individually tailormade for your requirements. The Scanhugger HL line-up, coupled with a full range of options and auxiliary equipment enables Scanhugger to build turnkey wood waste utilization systems. The range of Scanhugger auxiliary equipment includes pneumatic discharge systems, chip conveyor and auger discharge systems, metal detection and metal separation systems, wood scrap conveyors and specially designed auxiliary hoppers.

TURNKEY WOOD WASTE UTILIZATION SYSTEM

High customizability. Make it your own.

The Scanhugger HL line-up, coupled with a full range of options and auxiliary equipment enables us to build turnkey wood waste utilization systems. The range of Scanhugger auxiliary equipment includes pneumatic discharge systems, chip conveyor and auger discharge systems, metal detection and separation systems. And much more.

LEARN MORE
Scanhugger complete turnkey wood waste recycling shredder with hopper shredder conveyors, metal separation and hammer mill
